Superior Longitudinal Fasciculus (slf)

Protocol PDF Document (version 1.2): slf

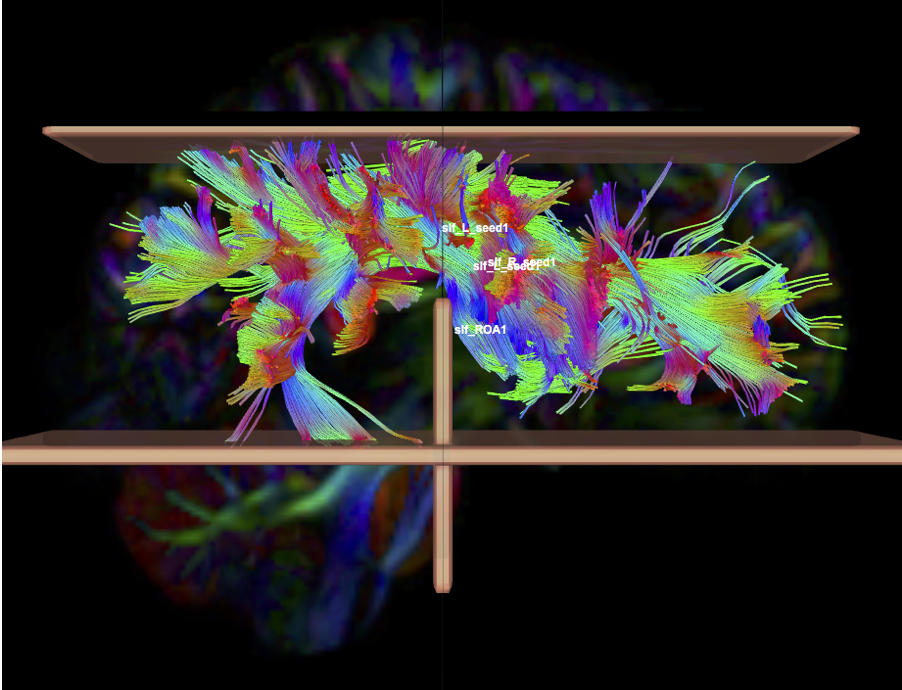

Screen Shot 2018-04-19 at 9.26.20 PM

Instructions:

  1. Create two separate coronal seed regions (at approx. coronal slice 96), one on each side.

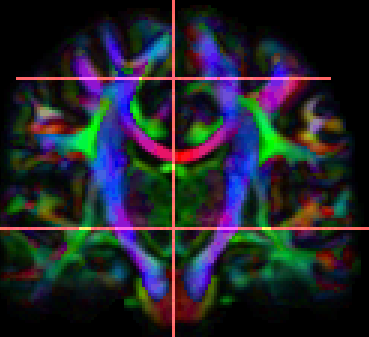

Screen Shot 2018-06-27 at 1.50.20 PM Screen Shot 2018-06-27 at 1.51.06 PM

  1. Create one ROA region and draw a sagittal ROA slice at the midline
  1. In the region list, check only the left seed region, then run fiber tracking. Based on this output, ROA placement will be clearer.
  1. Using the same ROA file, draw three more regions:
      1. on an axial slice superior to the seed regions
      2. on an axial slice inferior to the seed region
      3. on a coronal slice inferior to the seed regions
  1. In the region list, check only the left seed region and ROA regions, then perform fiber tracking. Under the tract list, make sure only the desired left tract is checked and highlighted in purple. Save region, tract, and density files.
  1. Uncheck the left seed region and check the right seed region and ROA region, then perform fiber tracking. Make sure only the desired right tract is checked and highlighted in purple. Save region, tract, and density files.
