Superior Corona Radiata (scr)

Protocol PDF Document (version 1.2): scr

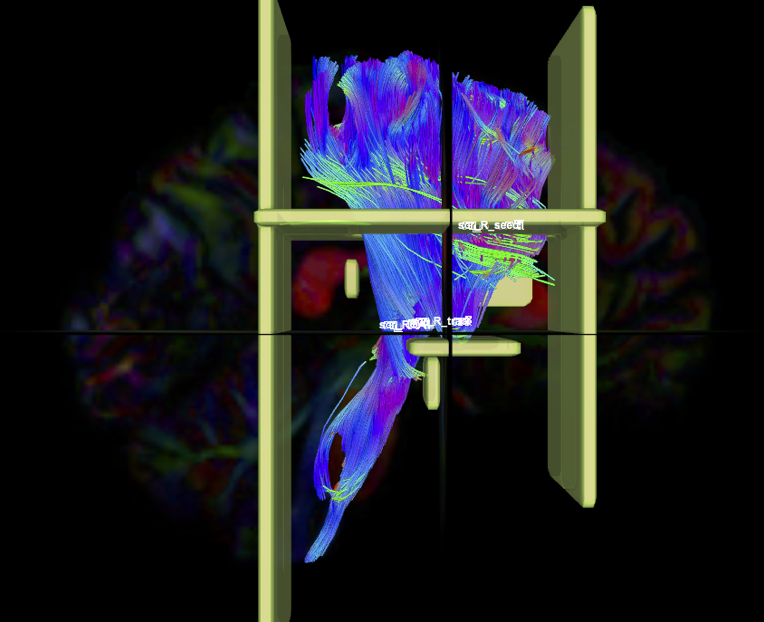

Screen Shot 2018-04-19 at 9.17.22 PM

Instructions:

  1. Create two separate axial seed regions (at approx. axial slice 99), one for each side.

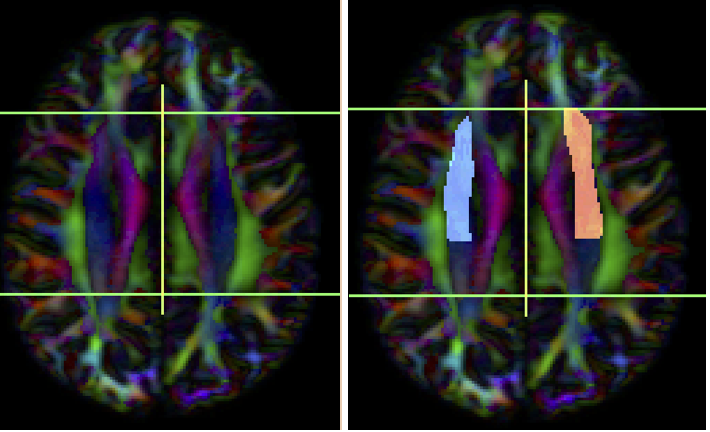

Screen Shot 2018-04-19 at 9.17.27 PM

  1. Create one ROA region and draw a sagittal ROA slice at the midline
  1. In the region list, check only the left seed region, then run fiber tracking. Based on this output, ROA placement will be clearer.
  1. Using the same ROA file, draw three or more regions:
      1. on a coronal slice anterior to the seed region
      2. on a coronal slice posterior to the seed region
      3. on the same axial slices as the seed region. Cover the entire slice then erase around the seed.
  1. In the region list, check only the left seed region and ROA regions, then perform fiber tracking. Under the tract list, make sure only the desired left tract is checked and highlighted in purple. Save region, tract, and density files.
  1. Uncheck the left seed region and check the right seed region and ROA region, then perform fiber tracking. Make sure only the desired right tract is checked and highlighted in purple. Save region, tract, and density files.
This entry was posted in Protocol. Bookmark the permalink.

2 Responses to Superior Corona Radiata (scr)

  1. Kurt says:

    I think the SCR describes a “region” of the brain rather than a specific pathway?

  2. Kurt says:

    Dewscription of “where” seed is as it relates to anatomy is needed. Possibly ROI rather than seed?
