April, 2007

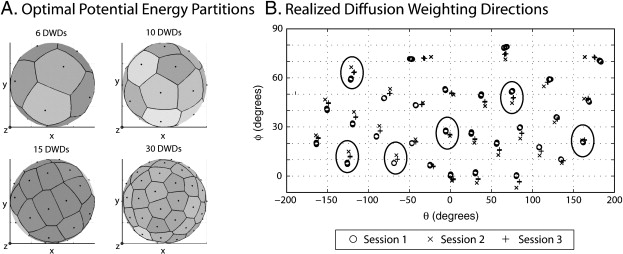

Minimum potential energy (PE) partitions of the Jones30 DW scheme. The optimal PE partitions (left) are evenly distributed as indicated by the shading which is proportional to the area of the spherical Voronoi tessellations of the DW directions. The realized directions are distinct (right) from the specified ones (left) because the gradient tables are corrected for subject motion. The right panel shows 30 clusters, where each cluster represents a specified DW direction and consists of three sub-clusters which represent realized DW directions from each session. The separation of the sub-clusters shows the inter-session effects, while the distribution of the symbols shows the intra-session effects. Large ovals indicate the subset of the Jones30 that was used to construct the PE6 partition.

Effects of diffusion weighting schemes on the reproducibility of DTI-derived fractional anisotropy, mean diffusivity, and principal eigenvector measurements at 1.5T.

Apr. 30, 2007—B. A. Landman, J. A. Farrell, C. K. Jones, S. A. Smith, J. L. Prince, P. C. van Zijl, and S. Mori. “Effects of Diffusion Weighting Schemes on the Reproducibility of DTI-derived Fractional Anisotropy, Mean Diffusivity, and Principal Eigenvector Measurements at 1.5T”, NeuroImage. 36(4): 1123-1138. July 2007. PMID17532649 Full text: https://www.ncbi.nlm.nih.gov/pubmed/17532649 Abstract Diffusion tensor imaging...
